Aceon centrifugal fan is a high efficiency fan, the housings and impellers are solid FRP made of resins formulated for maximum resistance to corrosive fume, gases, and mists. The steel hubs are encapsulated. Oversized shafts operate below critical speed on sealed pillow block bearings.
Aceon fan run at lower speed than any competitive fan of similar construction. Lower speeds reduce wear on the impeller, bearings and mechanical drive components. Everything designed for operational reliability and an absolute minimum of downtime.

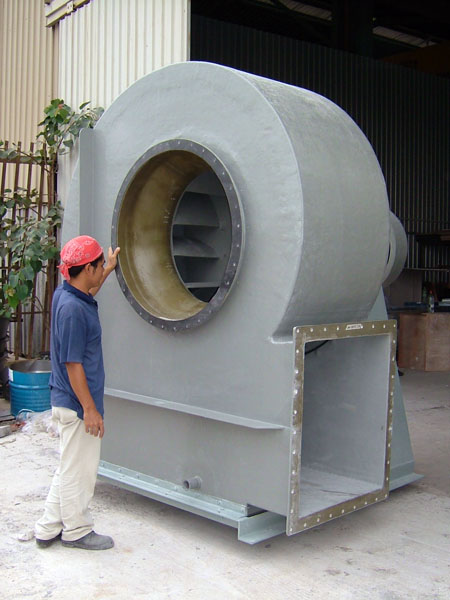

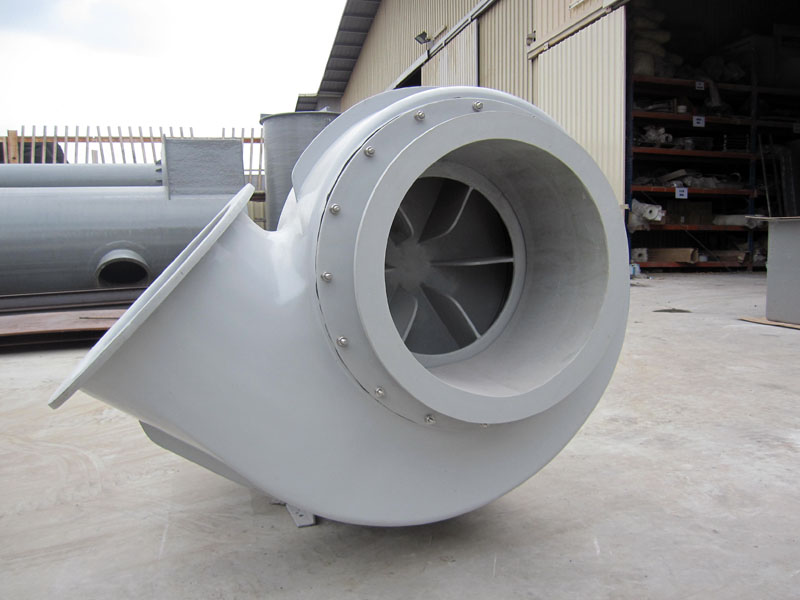

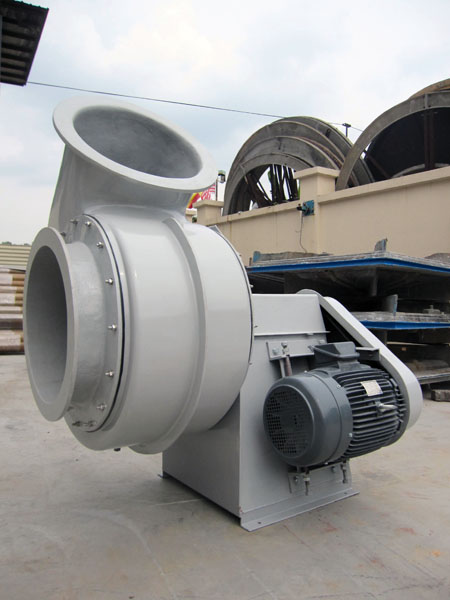

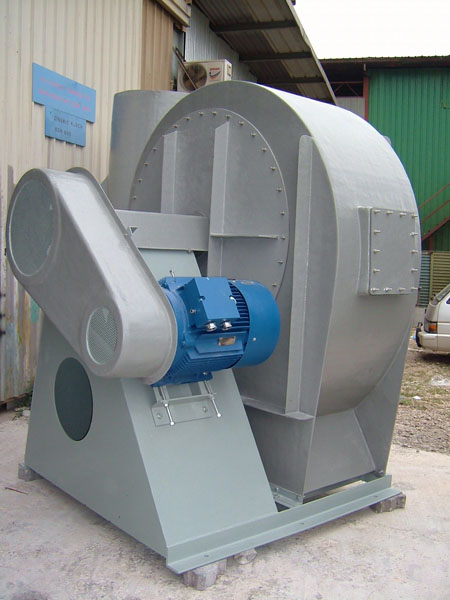

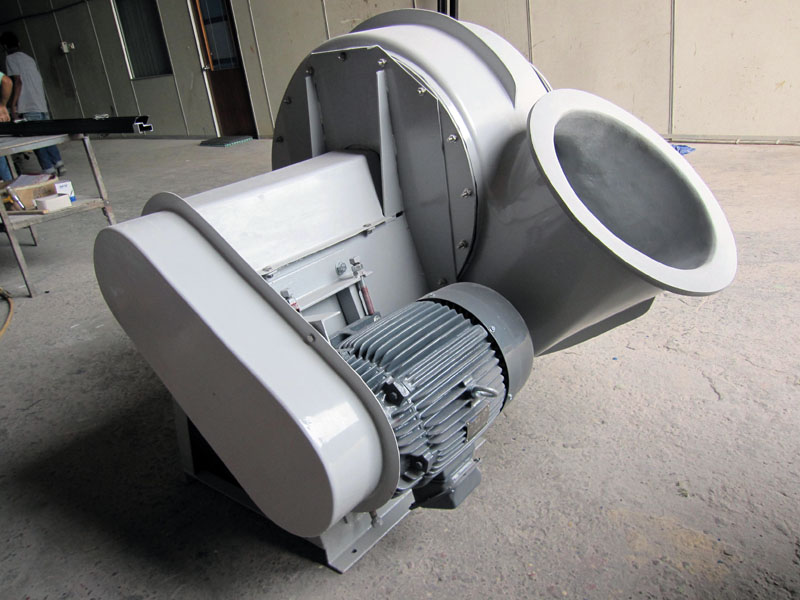

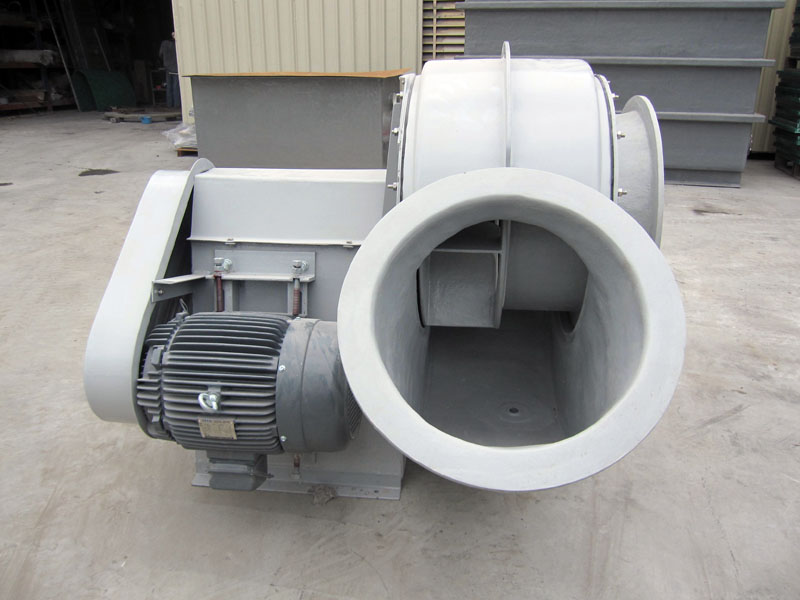

Click thumbnail to view larger photo.
Two type of features to suit a wide range of application are:
 |
Belt Driven Centrifugal Fans |
|
Direct Drive Centrifugal Fans (only for low medium pressure fans) |
Wide range of fan series are available as below:
| a. |
Low-Medium Pressure Centrifugal Fans |
| |
Static pressure |
: |
Upto 2.25 kPa |
| Volume flowrate |
: |
Upto 3600 cmm |
| b. |
Medium-High Pressure Centrifugal Fans |
| |
Static pressure |
: |
Upto 3.5 kPa |
| Volume flowrate |
: |
Upto 2100 cmm |
| c. |
High Pressure Centrifugal Fans |
| |
Static pressure |
: |
Upto 5.0 kPa |
| Volume flowrate |
: |
Upto 900 cmm |
| a. |
Fan Housing |
| |
Fan housing is constructed from FRP laminate to serve against weathering fumes and spillage. Fan housing can also be manufactured using fire-retardant resin according to ASTM E-84 specification. FRP housing is light and excellent against corrosion. |
| b. |
Shaft |
| |
The shafts are Grade EN 9 carbon steel shafts, but other material like stainless steel
and titanium can be used. |
| c. |
Belts |
| |
The belts used are standard heavy duty “V” type which able to withstand 1.4 - 1.6 times of safety factor. |
| d. |
Pulleys |
| |
Pulley used are high grade cast iron type to withstand greater stresses imposed by higher powered “V” belts |
| e. |
Metal Parts |
| |
All exposed metal parts are epoxy coated for protection against corrosive fumes, liquid and gases. |
| f. |
Fiberglass Impeller |
| |
The fiberglass impeller is manufactured using corrosive resistant vinyl ester resin to withstand corrosive air stream. The resin rich surface will enhances the life span of the impeller against corrosion. The tough and strong fiberglass structural allow the impeller rotate from low to high speed. |
| g. |
Bearings |
| |
The bearings used are heavy duty type, grease packed and scaled for protection against fume, moistures and dust. Long life span is ensured by proper maintenance. |
|
|
